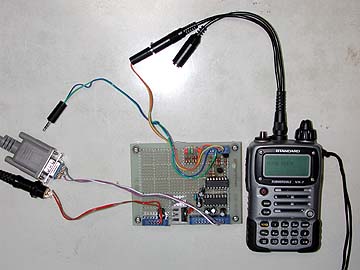

fig 1 Original I/F and VX-7
(connecting via the microphone adapter (CT-91))
VX-7 is domestic (Japanese) version of YAESU's VX-7R. I tested VX-7 for this experimentation, but the most of this description is probably apply to VX-7R.
I made the original interface(I/F) for connecting VX-7 and
PC(Personal Computer), because the software or the connecting
cable in order to edit the memory of the VX-7 are not sold in
Japan.

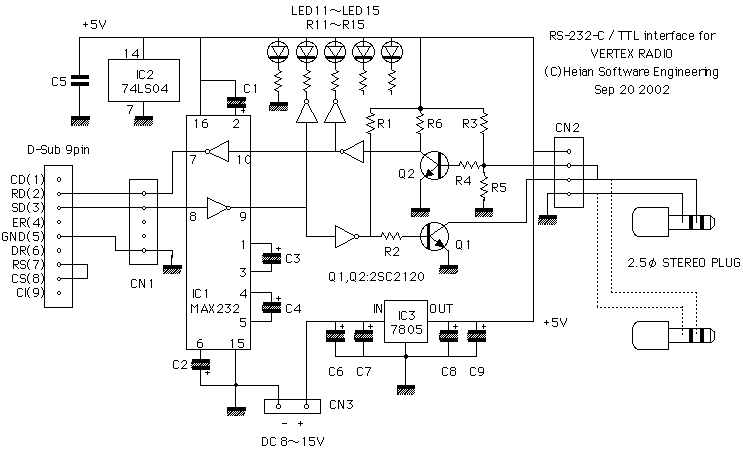

Using RS-232C / TTL Interface chip (MAX232), my I/F works certainly
with any portable PC.
| Part | Type and constant | RMKS |
| IC1 | MAX232 | RS-232-C - TTL level converter (Maxim Integrated Products) |
| IC2 | 74LS04 | Hex INVERTER (Texas Instruments) |
| IC3 | 7805 | +5V 1A Voltage-Regulater IC (Matsushita) |
| Q1 | 2SC2120 | Small-Signal NPN transistor (Toshiba) |
| Q2 | 2SC2120 | (the same as above) |
| LED11 - LED15 | (General-purpose LED) | LEDs for line monitor. (LED 14 and 15 are spare for future ) |
| R1 | 10K (1/4W) | - |
| R2 | 10K (1/4W) | - |
| R3 | 47K (1/4W) | - |
| R4 | 47K (1/4W) | - |
| R5 | 100K (1/4W) | - |
| R6 | 10K (1/4W) | - |
| R11 - R15 | 1K (1/4W) | - |
| C1 | 2.2uF(50V) | - |
| C2 | 2.2uF(50V) | - |
| C3 | 2.2uF(50V) | - |
| C4 | 2.2uF(50V) | - |
| C5 | 0.01uF | - |
| C6 | 47uF(25V) | - |
| C7 | 0.1uF(50V) | - |
| C8 | 0.1uF(50V) | - |
| C9 | 2.2uF(50V) | - |
19,200bps, 8bits, Stop-bit:1bit, Parity:none, XON/XOFF control:none
When continues transmitting at 19,200bps, VX-7 at receiving end lost some data. So, the suitable waiting time after transmitting each one-character is needed.
| Operation of transmitting end | Operation of receiving end | |
| 1)
Push Power key while pushing [MON] 2) Indicating "CLONE" on LCD. |
1)
Push Power key while pushing [MON] 2) Indicating "CLONE" on LCD. 3) [V/M] 4) Indicating "CLONE WAIT" on LCD. |
|
 |
||
| 3)
[BAND] 4) Indicating "CLONE TX" on LCD. 5) Transmitting 1st block of data (10byte). |
||
 |
||
| 5)
Indicating "CLONE RX" on LCD. 6) Transmitting ACK(06H). |
||
|
||
| 6) Transmitting 2nd block of data (8byte). | ||
|
||
| 7) Transmitting ACK(06H). | ||
|
||
| 7) Transmitting 3rd block of data (16193byte). | ||
|
||
| 8) When it finishes to receive the data, the same operation as the time of "power on"(graphic presentation of opening is shown), it returns to normal mode. | ||
| End | End | |
|
||
I wrote the software for loading, saving or analyzing the cloning data of VX-7 by N88-BASIC. N88-BASIC is a kind of Microsoft BASIC(Beginner's All-purpose Symbolic Instruction Code) for NEC's PC-9801 series(very famous and popular Japanene PC in 1980's, but it is not IBM PC clone!).
If you want to download this program, See This page.(but in Japanene....)
